Mechanical Zelinka

Thread Status: Hello , There was no answer in this thread for more than 60 days.
It can take a long time to get an up-to-date response or contact with relevant users.

Zahar

Well-Known Member
Jun 3, 2014
199
38
68
60

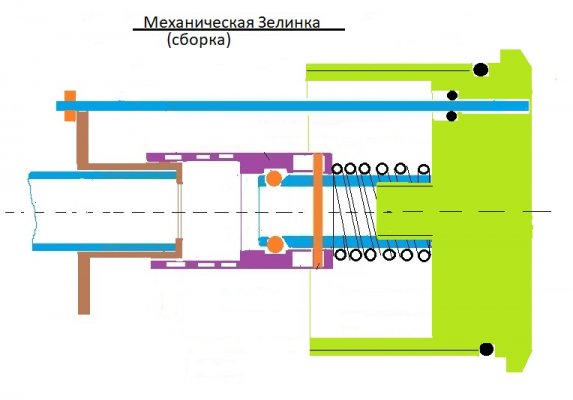

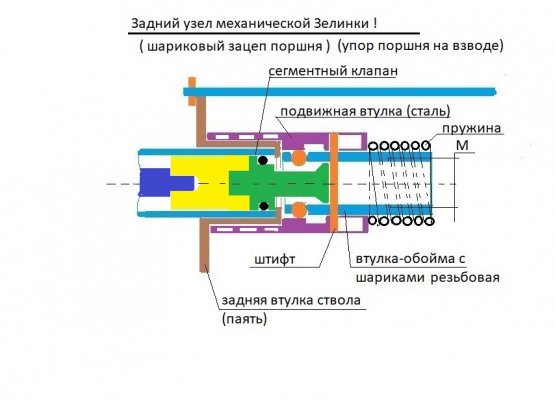

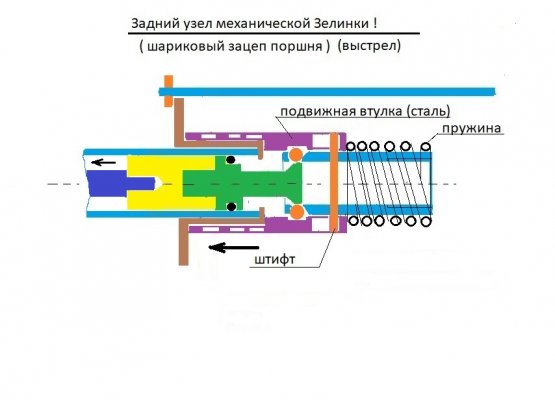

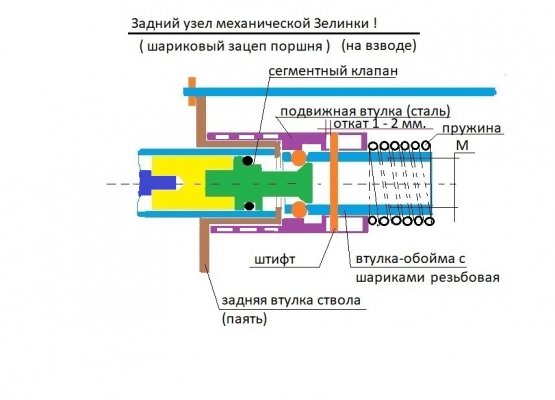

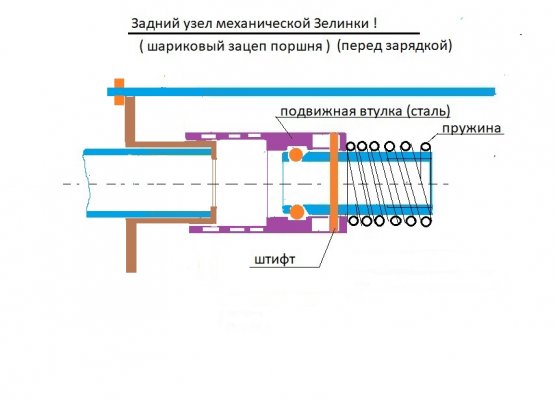

Friends! I bring to your attention the concept of Mechanical Zelinka! The very successful Zelinka Form Factor can now be used to mechanically engage a piston with an automatic trigger thanks to the moving barrel! Outside, it will be impossible to recognize where the valve is, and where the mechanical Zelinka is! The use of a ball hook is due to the minimization of the linear size! If the Masters finally do this *Miracle*, then you will be pleasantly surprised by the operation of the gun without throttle and delays! You need to pump through the barrel using the pumping piston! Glory to Ukraine!


Attachments

  • Механическая Зелинка! — копия — копия.jpg
    Механическая Зелинка! — копия — копия.jpg
    60.6 KB · Views: 160
  • Механическая Зелинка! — копия.jpg
    Механическая Зелинка! — копия.jpg
    62.3 KB · Views: 134
  • Механическая Зелинка!.jpg
    Механическая Зелинка!.jpg
    75.6 KB · Views: 127
  • Механическая Зелинка!1.jpg
    Механическая Зелинка!1.jpg
    75.5 KB · Views: 132
  • Механическая Зелинка!2.jpg
    Механическая Зелинка!2.jpg
    51.3 KB · Views: 136

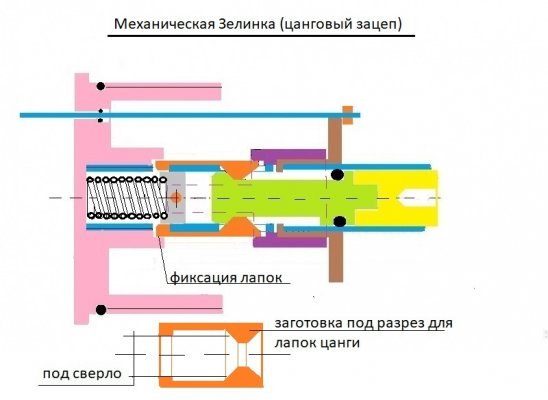

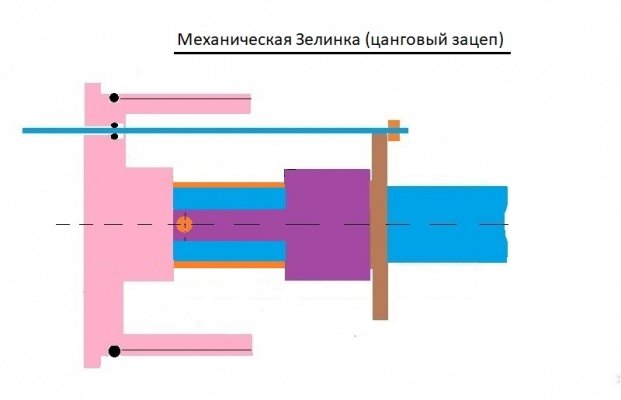

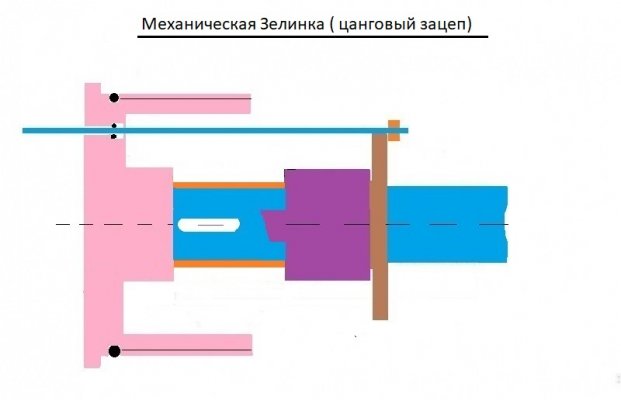

collet hook


Attachments

  • Зел. Мех. запираемый зацеп.jpg
    Зел. Мех. запираемый зацеп.jpg
    66.8 KB · Views: 119
  • Мех.зел. цанга1.jpg
    Мех.зел. цанга1.jpg
    34.4 KB · Views: 121
  • Мех.зел.цанга2.jpg
    34.5 KB · Views: 118

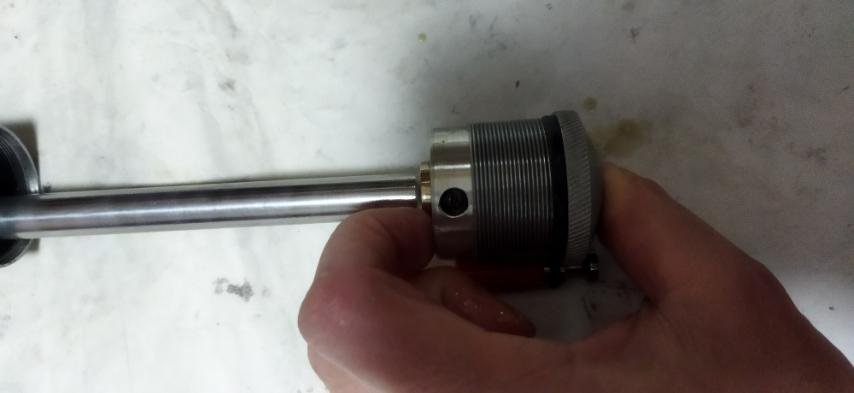

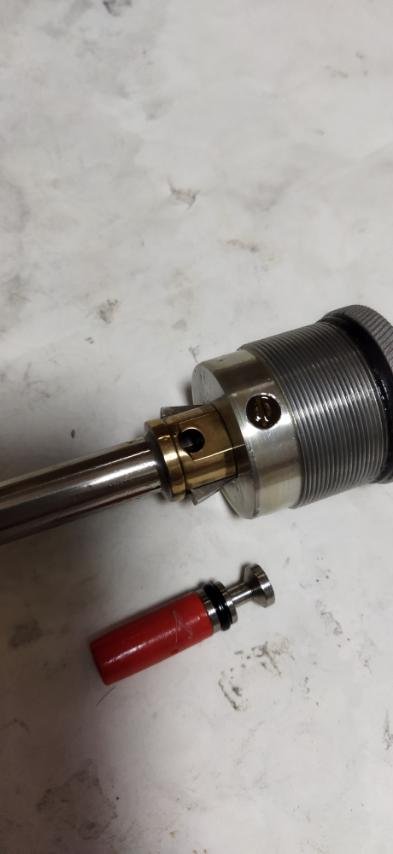

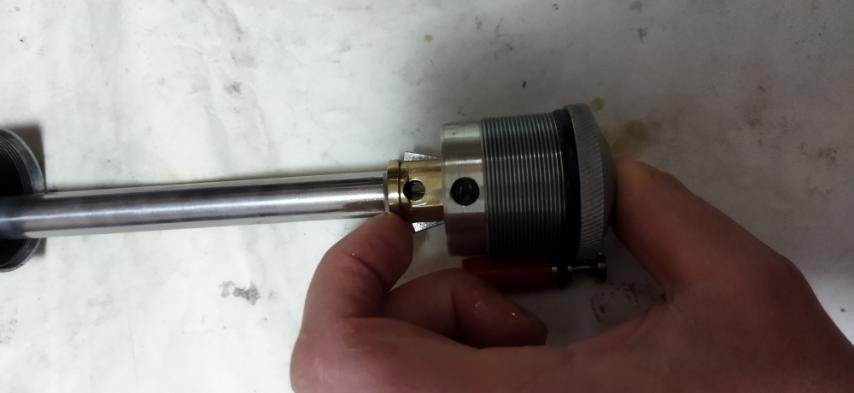

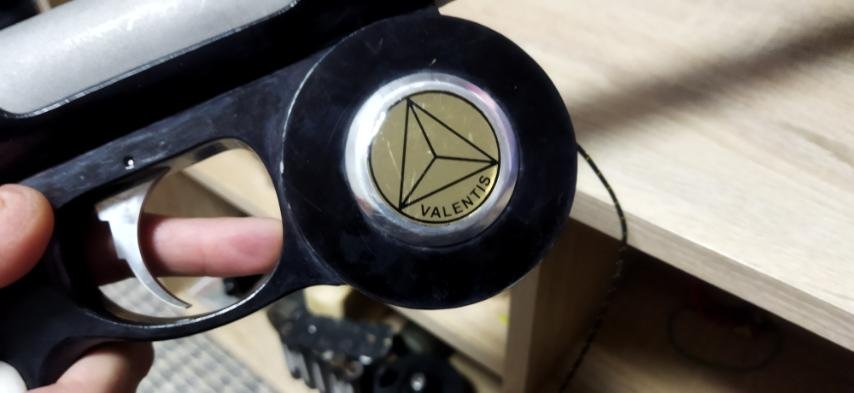

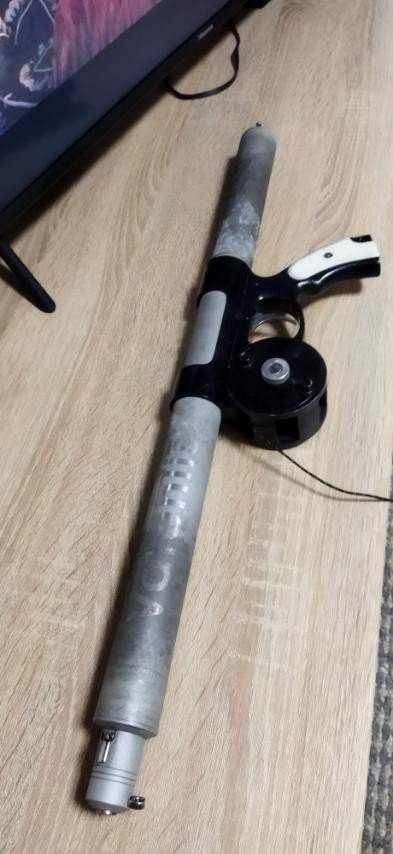

Mechanical Zelinka already exists and works well! Master unknown! It differs from my version with a loaded and heavy barrel!


Attachments

  • 1000000065.jpg
    52.5 KB · Views: 88
  • IMG-1a7ff354d0c59ede46f8edaf18d41823-V.jpg
    32.9 KB · Views: 100
  • IMG-94e9b2f4c4cfaa7c7502ae44711d8a2f-V.jpg
    24.7 KB · Views: 103
  • IMG-b8d5cce05644ffe36145446b628d7938-V.jpg
    21.7 KB · Views: 97
  • IMG-e538645cc60455062a1bd91433a93a86-V.jpg
    22.5 KB · Views: 95
