old clipper speargun ???

[ROSCOE]

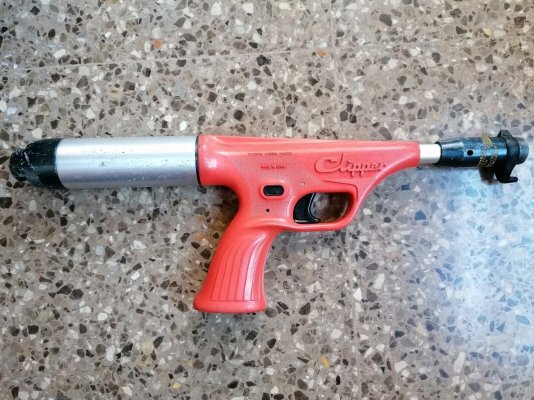

i bought an,from what i can figure, a clipper brand nemrod model speargun, made in 1970. it all seems to be there and the seals appear still good. BUT i just need to know how to fill it up with air. attached pic is of the model i have any and all help would be greatly appreciated. thx in advance, steve



[Mr. X]

@popgun pete will likely know



[popgun pete]

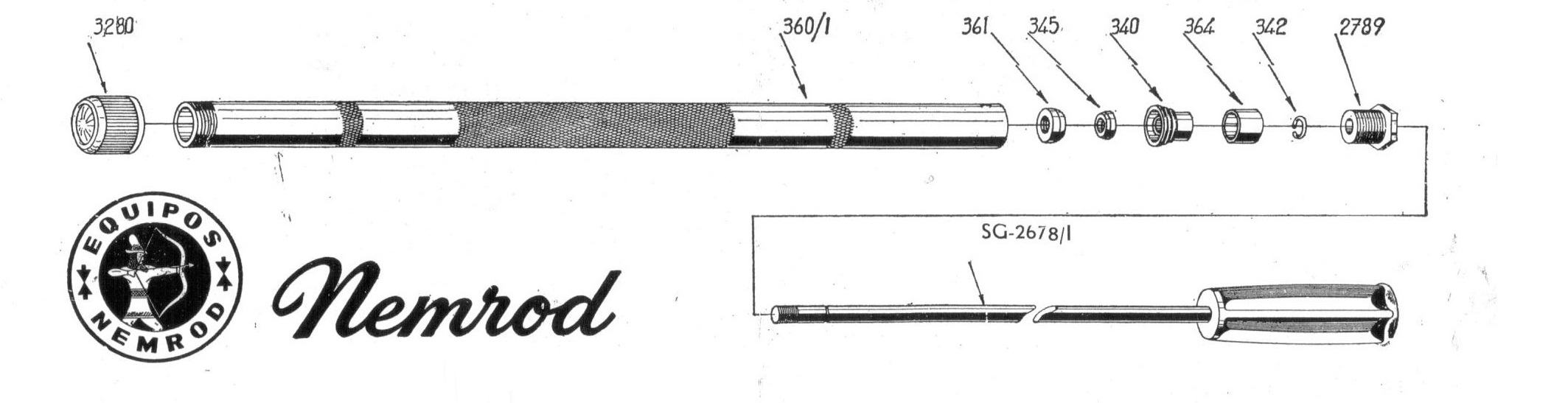

You need the Nemrod hand pump seen below. These pumps are the same for the entire Nemrod range since the late sixties. Usually the pump bodies were anodized blue, but they are a silver colour for that model "Clipper". The “Clipper” was in production for a long period and went through a few colour scheme changes during that time. The pump seals deteriorate over time, so ideally you want one of the later pumps, if you can find one. These items sometimes show up on eBay.



[ROSCOE]

You need the Nemrod hand pump seen below. These pumps are the same for the entire Nemrod range since the late sixties. Usually the pump bodies were anodized blue, but they are a silver colour for that model "Clipper". The “Clipper” was in production for a long period and went through a few colour scheme changes during that time. The pump seals deteriorate over time, so ideally you want one of the later pumps, if you can find one. These items sometimes show up on eBay.
View attachment 58042

Thanx alot for the info looks like I'm going to hv to fig out some kinda DIY way to fill this thing up. Do u hv any idea what the PSI is when it's considered full? And how many shots do u think I can get out of 1 full pump?? Thx again for ur time and knowledge. Steve



[popgun pete]

Pumping the gun up creates an air spring, so the gun does not lose air when it shoots. Those guns probably use about 20 bar or around 300 psi at the maximum, so 16 bar or 230 psi would be OK. The Clipper came in four sizes, models I, 2 and 3 with the latter being the longest and a mini-Clipper that fitted in a leg holster. That smallest gun was pretty useless except for shooting fish in holes and the holster was too bulky for wearing on a dive. Your gun is the mini-Clipper.



[Andrew the fish]

it is amazing how much PPete knows about old spearguns.



[ROSCOE]

Pumping the gun up creates an air spring, so the gun does not lose air when it shoots. Those guns probably use about 20 bar or around 300 psi at the maximum, so 16 bar or 230 psi would be OK. The Clipper came in four sizes, models I, 2 and 3 with the latter being the longest and a mini-Clipper that fitted in a leg holster. That smallest gun was pretty useless except for shooting fish in holes and the holster was too bulky for wearing on a dive. Your gun is the mini-Clipper.

And 1 last ?,again thank u for time answering these newb ?, Do u know of anyone that has figured out a DIY way to fill this gun without the factory pump?



[popgun pete]

You need to buy another pump from another brand, say a Salvimar or Mares or Cressi pump and have an adaptor made to bridge between the Nemrod inlet valve thread and the front end of the replacement hand pump. The volume inside this adaptor needs to be small or the resultant dead space in the pump will be too large which means the pumping pressure limitation of the pump will be too low. As to what this means you can read this.

Pumping up pneumatic spearguns

I note that there have been comments about the difficulty in pressuring pneumatic spearguns. While it might appear obvious to some it is worthwhile reviewing why the hand pump supplied with each speargun works. The pump only transfers air into the gun when the pressure developed inside the...

forums.deeperblue.com



[popgun pete]

Pneumatic speargun pumps are not unlike bicycle pumps, except they have a bigger bore to keep the number of pump strokes required to reach the desired pressure down to a reasonable number. Bicycle pumps can deliver a few hundred psi, but the internal volume of an inflated bicycle inner tube is relatively small, so the pump strokes needed are relatively low. Consequently small pneumatic spearguns require a lesser number of pump strokes than the longer models due to the lower internal volume of their air tanks.



[popgun pete]

Pneumatic Speargun Pumps

Used to pump air into the pneumatic guns. Note that different manufacturers use different pumps, choose from Omer, Beuchat, Mares, Cressi-sub or Seac-sub. buy now; ships today!

www.spearfishingworld.com



[marco15499]

That's a Mini-Clipper. I had one. Very difficult to get a fish with one of those due to the short range. I would keep it as a trophy in my lining room.

As for pressurizing it, You can also get an adaptor made at a machine shop and use a scuba tank to fill it. Be carefull not to overfill it. As Pete said, 15-18 ATM (around 240-250 PSI) is more than enough.

it is amazing how much PPete knows about old spearguns.

Pete is the best!
