Vlanikgun

[Vlanik]



[Vlanik]

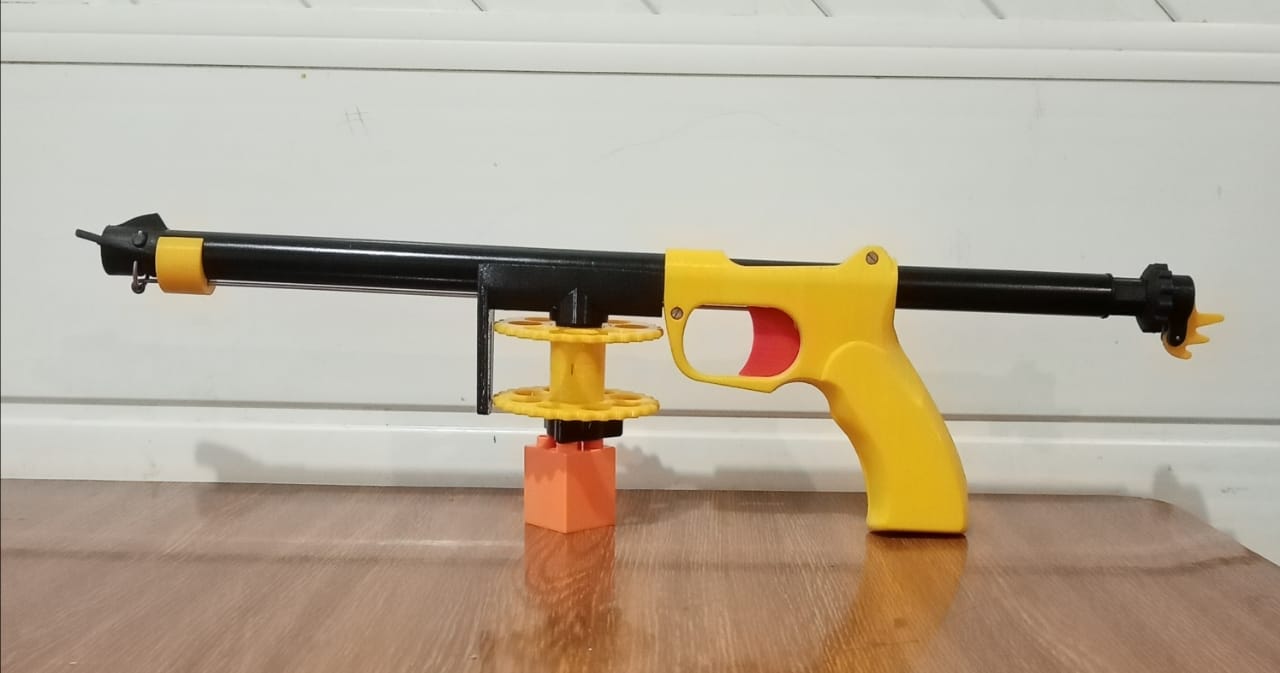

Handle, float, line thrower and trigger, printed on a 3D printer made of ABS plastic



[Vlanik]



[Vlanik]



[Vlanik]



[Vlanik]



[Vlanik]

View attachment 56987

View attachment 56987



[Vlanik]



[Vlanik]

Two more parts for the Vlanik rifles have been hydraulically tested...These are the front and rear end caps...The stand has a pressure of 75 atmospheres...Now these two parts can be printed on a 3D printer...



[Vlanik]



[Vlanik]



[Vlanik]



[Vlanik]



[Vlanik]

26.05.2022



[Vlanik]

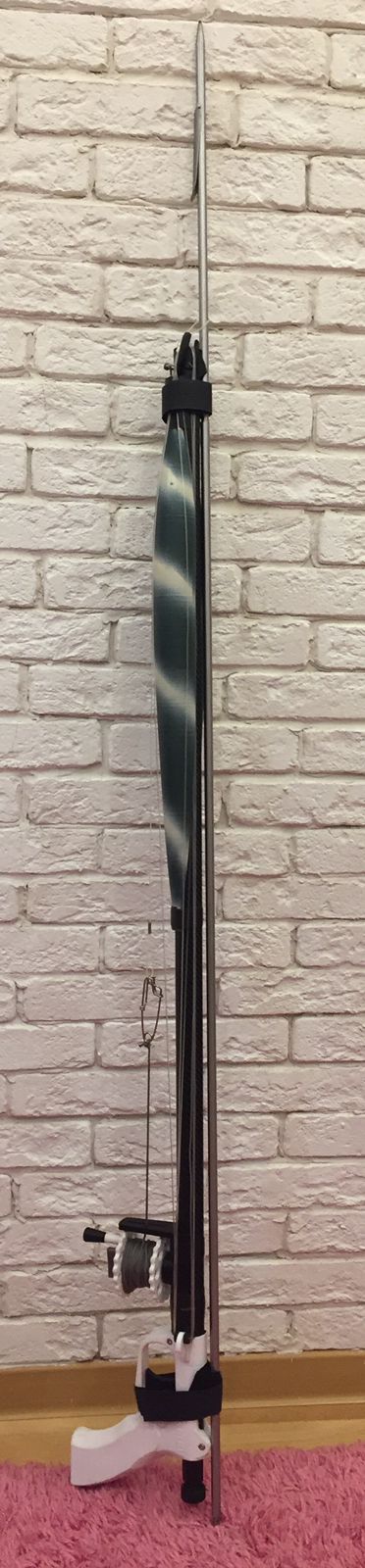

Shaitan-pipe V-100... Overall length 100 cm, harpoon 8mm x 130 cm, harpoon weight 510 gr.
harpoon working stroke 95 cm, maximum charging force 25 kgf, harpoon acceleration time 0.067 sec, initial speed of the harpoon 28.1 m/sec, initial energy of the harpoon 201 joules, harpoon flight time to 6 meters 0.5 sec, striking range 8 m, efficiency 0.94, KPI 0.95...



[tromic]

View attachment 58242Shaitan-pipe V-100... Overall length 100 cm, harpoon 8mm x 130 cm, harpoon working stroke 95 cm, maximum charging force 25 kgf, harpoon acceleration time 0.067 sec, initial speed of the harpoon 28.1 m/sec, initial energy of the harpoon 201 joules, harpoon flight time to 6 meters 0.5 sec, striking range 8 m, efficiency 0.94, KPI 0.95...

What is the weight of the shaft and the starting charging force? 25 kgf max charging force seems to be low for 8 mm shaft..? It is usual charging force for 7 mm shaft. I know the energy is high but the speed is not.



[Vlanik]

The speed is sufficient to shoot at long distances



[tromic]

OK, so the starting charging force is 18.58 kgf and the weigth of the shaft is 0.509 kg. Right?



[Vlanik]

Final charging force 25 kgf, harpoon weight 509 gr.
