Pump threads and shaft compatibility between different brands.

Thread Status: Hello , There was no answer in this thread for more than 60 days.
It can take a long time to get an up-to-date response or contact with relevant users.
popgun pete

popgun pete

Well-Known Member
Jul 30, 2008
4,566
1,308
353
Have disassembled something like 10 mares competition and jet guns. They all had the pin hole deformed and weared out.
The last one was rescued by replacin' the handle with a Sten one.

In the latest Cressi Saetta the manufacturer is using a very similar system as the one described above for the Competition/Jet Mares models. But I've had no direct experience with that speargun.
Any photos of said hole?

popgun pete

popgun pete

Well-Known Member
Jul 30, 2008
4,566
1,308
353
Looks like the "Competition Line" and the "Jet" are not exactly the same in the trigger area if you look closely.
Mares Jet and Compettion Line spearguns

vrokhlenko

vrokhlenko

Well-Known Member
Sep 22, 2002
296
77
118
57
You have mentioned the pump before and I am intrigued - can you share some pics, please? The more the merrier.
I think I know how the o-ring piston seal works. By the o-rings moving into a part of the piston with a small slot in it to allow "leakage" when retracting the handle, right?

The reason I am asking is that I was very close to making such an exact pump before a trip a while back but ran out of time. I have been burned 2-3 times before with shitty pumps breaking on me on trips. Once, the seal of my One Air pump disintegrated as I was filling up a 120 gun and a small piece of rubber from the pump seal got stuck in the inlet valve of the gun. As a result, the gun which I had just about pumped to 27 or so bar lost all the air and I had to take it apart, fix it, fix the pump and pump the gun back up. I was not happy. Another time, I cross threaded a Seac pump and yeah, my Mares pump has the pushed-in end wiggling loose.
Will do so tmrw.

  • Like
Reactions: Diving Gecko
vrokhlenko

vrokhlenko

Well-Known Member
Sep 22, 2002
296
77
118
57
Here are the pics!


Attachments

  • 1.jpg
    1.5 MB · Views: 170
  • 2.jpg
    1.8 MB · Views: 166
  • 3.jpg
    1.4 MB · Views: 179
  • 4.jpg
    1.5 MB · Views: 165
  • 5.jpg
    2.1 MB · Views: 178
  • 6.jpg
    1.4 MB · Views: 175
  • 7.jpg
    1.6 MB · Views: 171
  • 8.jpg
    1.5 MB · Views: 179
  • Like
Reactions: Diving Gecko
Diving Gecko

Diving Gecko

shooter & shooter
Jun 24, 2008
1,698
459
188
Thanks for the pics:). But I can’t figure out what the little white plug/piston is for.
I’ve seen pumps where the o-ring seat is deliberately opened on one side so that when you retract the pump handle the o-ring is allowed to leak. And then, obviously in the “pumping direction” the o-ring flange is normal so that there’s a full seal. I guess you did that on the metal piston, too?


Sent from my iPhone using Tapatalk

vrokhlenko

vrokhlenko

Well-Known Member
Sep 22, 2002
296
77
118
57
Thanks for the pics:). But I can’t figure out what the little white plug/piston is for.
I’ve seen pumps where the o-ring seat is deliberately opened on one side so that when you retract the pump handle the o-ring is allowed to leak. And then, obviously in the “pumping direction” the o-ring flange is normal so that there’s a full seal. I guess you did that on the metal piston, too?


Sent from my iPhone using Tapatalk
I knew you would have this question. Little white thing does not move. It has to o-rings , one inside the body of the pump and one plays the role of that o-ring at the end of your pump (that thing that wiggles). It is used to reduce the dead space of the pump

vrokhlenko

vrokhlenko

Well-Known Member
Sep 22, 2002
296
77
118
57
On the last photo you can see the hole in the body of the pump next to the rear thread. This is the air collector hole. O-rings on the moving piston (end of the pusher) never leak. I use two to increase reliability

  • Like
Reactions: Diving Gecko
vrokhlenko

vrokhlenko

Well-Known Member
Sep 22, 2002
296
77
118
57
Introduction of that white cylinder was necessary in order to move the thread to the body of the pump and thus fix the shit Mares created.

  • Like
Reactions: Diving Gecko
Diving Gecko

Diving Gecko

shooter & shooter
Jun 24, 2008
1,698
459
188

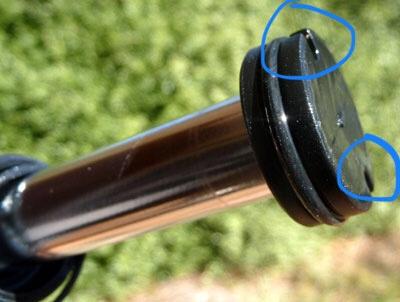

Here’s a pic of a bike pump showing the intentional cut outs to allow one-way leaking:



Sent from my iPhone using Tapatalk

vrokhlenko

vrokhlenko

Well-Known Member
Sep 22, 2002
296
77
118
57
Here’s a pic of a bike pump showing the intentional cut outs to allow one-way leaking:



Sent from my iPhone using Tapatalk
No,I have nothing like that. Your original pump also has the air hole. But the piston is quite different - it is not serviceable. Mine is. Just replace o-rings and you are good to go.

  • Like
Reactions: Diving Gecko
Diving Gecko

Diving Gecko

shooter & shooter
Jun 24, 2008
1,698
459
188
Introduction of that white cylinder was necessary in order to move the thread to the body of the pump and thus fix the shit Mares created.

Ah, of course! So, about half of it will stick out and seal inside the inlet valve of the gun.
Got it now.


Sent from my iPhone using Tapatalk

vrokhlenko

vrokhlenko

Well-Known Member
Sep 22, 2002
296
77
118
57
Unfortunately my pump is aluminum (the pusher is stainless). Since it is screwed into the end of the gun that is stainless it creates a chance of cross-threading. Thus you have to be careful. First of all it is difficult to find a stainless tube 14mm OD and 10mm ID and secondly cutting a 14x1 thread on stainless is a bitch. You need a proper die that is good for stainless and costs a lot. Or cut it on a lathe

  • Like
Reactions: Diving Gecko
vrokhlenko

vrokhlenko

Well-Known Member
Sep 22, 2002
296
77
118
57
Ah, of course! So, about half of it will stick out and seal inside the inlet valve of the gun.
Got it now.


Sent from my iPhone using Tapatalk
Exactly! I cut it out of delrin. It will last forever since it does not move

Diving Gecko

Diving Gecko

shooter & shooter
Jun 24, 2008
1,698
459
188
Unfortunately my pump is aluminum (the pusher is stainless). Since it is screwed into the end of the gun that is stainless it creates a chance of cross-threading. Thus you have to be careful. First of all it is difficult to find a stainless tube 14mm OD and 10mm ID and secondly cutting a 14x1 thread on stainless is a bitch. You need a proper die that is good for stainless and costs a lot. Or cut it on a lathe

Yeah, I’m lucky, I have a small lathe at home. I was even thinking of making the pump in titanium as I think I can get it cheap in China.


Sent from my iPhone using Tapatalk

vrokhlenko

vrokhlenko

Well-Known Member
Sep 22, 2002
296
77
118
57
Yeah, I’m lucky, I have a small lathe at home. I was even thinking of making the pump in titanium as I think I can get it cheap in China.


Sent from my iPhone using Tapatalk
I have a small lathe as well. Titanium would not be cheap - you need 18" length and 2mm wall. Go to aliexpress and look for stainless. You need only the part with the thread to be 14mm OD, the rest you can safely reduce to 1mm wall. Thus weight saving with titanium would be miniscule

vrokhlenko

vrokhlenko

Well-Known Member
Sep 22, 2002
296
77
118
57
Yeah, I’m lucky, I have a small lathe at home. I was even thinking of making the pump in titanium as I think I can get it cheap in China.


Sent from my iPhone using Tapatalk

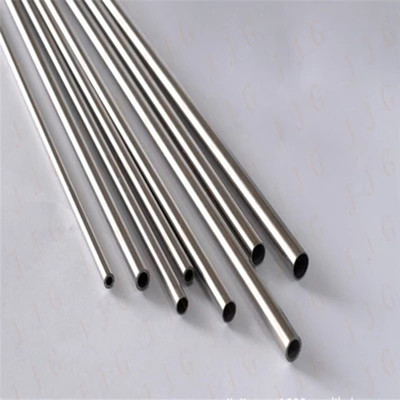

Select 14mm OD, 2mm wall, 45 cm length

  • Like
Reactions: Diving Gecko
Diving Gecko

Diving Gecko

shooter & shooter
Jun 24, 2008
1,698
459
188
Select 14mm OD, 2mm wall, 45 cm length

Yeah. I have a few of those on my wishlist already;-). I’m actually based in China though I haven’t been back “home” for a long time now. So, I can get pretty much everything on Taobao within a few days at very affordable prices. And often a bit cheaper than the same vendors sell their stuff on eBay for. I’ve bought titanium, brass, SS and alu in lengths of just 10-20cm and had it shipped to my door in two days.

The only reason I didn’t order the titanium tubes yet was because the seller couldn’t really tell me how well polished the inside of the tubes are. I might just buy one and see how they look and if I can polish them myself. Otherwise, the mirror polished SS tubes will be my backup solution. It’s been a year or more but I think I was looking at USD15-20 or so for a meter for a pump.

I do actually care about weight when traveling as it all adds up. But that said I really like that with titanium you don’t really have to worry about corrosion or dissimilar metal issues. That said, it’s not fun to turn ti on a mini lathe at all. I’ve done it, but far from easy.


Sent from my iPhone using Tapatalk

Last edited:
vrokhlenko

vrokhlenko

Well-Known Member
Sep 22, 2002
296
77
118
57
Yeah. I have a few of those on my wishlist already;-). I’m actually based in China though I haven’t been back “home” for a long time now. So, I can get pretty much everything on Taobao within a few days at very affordable prices. The only reason I didn’t order the titanium tubes yes was because the seller couldn’t really tell me how well polished the inside of the tubes are. I might just buy one and see how they look and if I can polish them myself. Otherwise, the mirror polished SS tubes will be my backup solution.


Sent from my iPhone using Tapatalk
You must look for a 'seamless' tube. They are smooth. But there is an issue of finding a proper o-ring given the ID of the tube. You must know before hand what o-rings are available to you. See here https://www.applerubber.com/oring-gland-calculator/ for reference

  • Like
Reactions: Diving Gecko
Diving Gecko

Diving Gecko

shooter & shooter
Jun 24, 2008
1,698
459
188
You must look for a 'seamless' tube. They are smooth. But there is an issue of finding a proper o-ring given the ID of the tube. You must know before hand what o-rings are available to you. See here https://www.applerubber.com/oring-gland-calculator/ for reference

True. But I have reverse engineered enough bulkheads and other airgun parts by now and made a few of my own from scratch to have developed a good understanding of proper o-ring seat design. Definitely enough to see when the real manufacturers have not followed “the rules”.
I use two other online calculators one of which is Trelleborg’s and the other one escapes me now. But they sure do make it easy and I’ve learned a lot by using them.
Again, with Taobao I can literally buy pretty much any o-ring size piecemeal for very little money. But I’m sure a standard AS568 series or 1.5mm or 2mm section ring can work as long as you design the o-ring seat to give the ring the correct compression.


Sent from my iPhone using Tapatalk

vrokhlenko

vrokhlenko

Well-Known Member
Sep 22, 2002
296
77
118
57
True. But I have reverse engineered enough bulkheads and other airgun parts by now and made a few of my own from scratch to have developed a good understanding of proper o-ring seat design. Definitely enough to see when the real manufacturers have not followed “the rules”.
I use two other online calculators one of which is Trelleborg’s and the other one escapes me now. But they sure do make it easy and I’ve learned a lot by using them.
Again, with Taobao I can literally buy pretty much any o-ring size piecemeal for very little money. But I’m sure a standard AS568 series or 1.5mm or 2mm section ring can work as long as you design the o-ring seat to give the ring the correct compression.


Sent from my iPhone using Tapatalk
If you get an ID of 10mm - you will find the o-rings. My pump's ID is 9.5mm - I could not find the 10mm one (to match the gun's valve ID).
